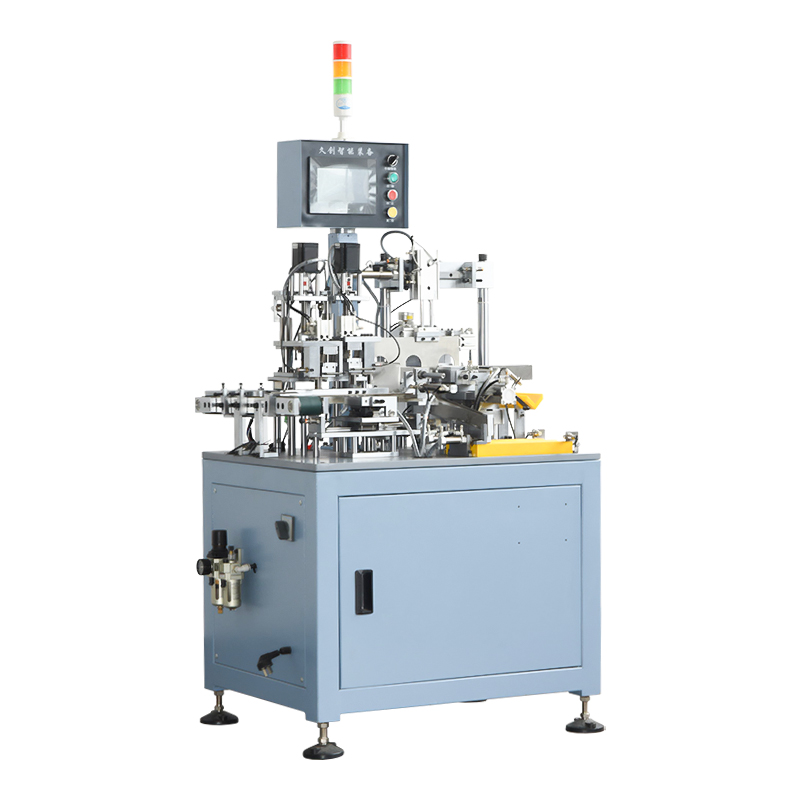

READ MOREProcess flow:
Conveyor belt/disc loading → Inner hole inspection of inner ring → Outer diameter inspection of outer ring → Unqualified product removal → Qualified product clearance inspection → Unqualified product removal → Qualified product discharge
Accuracy indicators:
Deviation of 10 repeated measurements of inner and outer diameters at a single point: ≤ 1 μ M
10 repetitions of single point measurement of clearance deviation: ≤ 1 μ M
Measurement of injury ratio: ≤ 1%
Featured features:
Suitable for various whole line assembly and inspection schemes
More reasonable workstation layout and smaller footprint
Interchange of different models of tooling for more convenient and fast operation
Device model | JR-NWY01 | JR-NWY02 |
Scope of application | Bearing outer diameter 22-50mm | Bearing outer diameter 50-100mm |
Work Efficiency | ≤ 3 seconds | ≤ 5 seconds |
Working Voltage | 220V/50Hz/1.5A | |
Working air pressure | ≥0.4MPa | |
Overall dimensions | 820×630×1800mm | 900×630×1800mm |
