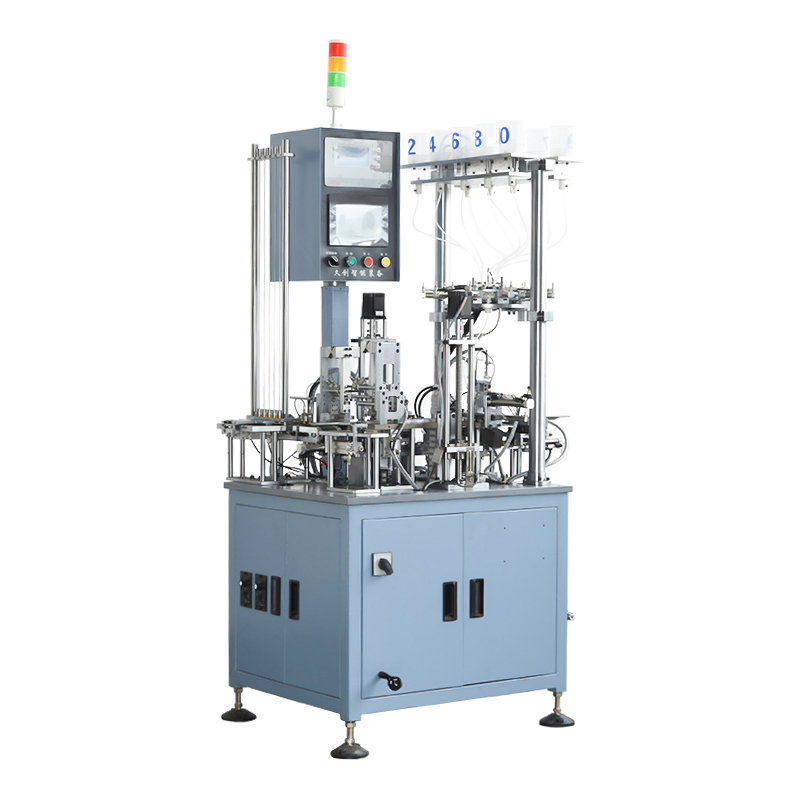

Fully Automatic Micro Bearing Assembly Instrument

SYSTEM DESCRIPTION:

Process flow:

Inner circle conveying and loading → Inner circle conveying → Inner circle channel measurement → Inner circle vacancy → Inner circle material warehouse →
Outer circle conveying and loading → Outer circle conveying → Outer circle channel measurement → Outer circle empty space → Outer circle material warehouse →Inner ring selection/outer ring selection → Inner and outer ring matching and closing → Empty station → Ball loading mechanism selection and installation → Bearing assembly → Completion of material discharge by assembly

Products Description

Message

Accuracy indicators:

10 repeated measurements at a single point in the channel ≤ 1 μM

The proportion of steel ball injuries caused by machines: ≤ 1% (relative to labor ratio)

Measure the proportion of injuries; ≤ 1%

Scattering ratio: ≤ 0.5%

Clearance deviation: ≤ 5 μ m. This indicator refers to the roundness of the raceway of the inner and outer rings being ≤ 1 μM)



Featured features:

The minimum production size of steel balls is 0.8mm.

Automatic benchmarking, automatic reading of standard parts, automatic alarm when benchmarking deviation occurs, and stop working.

The benchmarking time can be set by the user.

The inner and outer rings are paired with steel balls, with 16 material warehouses and 10 sets of steel balls for each inner and outer ring.

Customizable solutions, single ball bottle pick-up, single ball bottle cap control, steel ball scanning and ball adding, and a series of error prevention functions.

Overall design with hood.

Customized operation direction for the entire machine, suitable for various whole line schemes.

Device model JR-HT105
Scope of application Bearing outer diameter 5-30mm
Work Efficiency ≤ 3.5 seconds
Working Voltage 220V/50Hz/1.5A
Working air pressure ≥0.4MPa
Overall dimensions L800×W600×H1800
